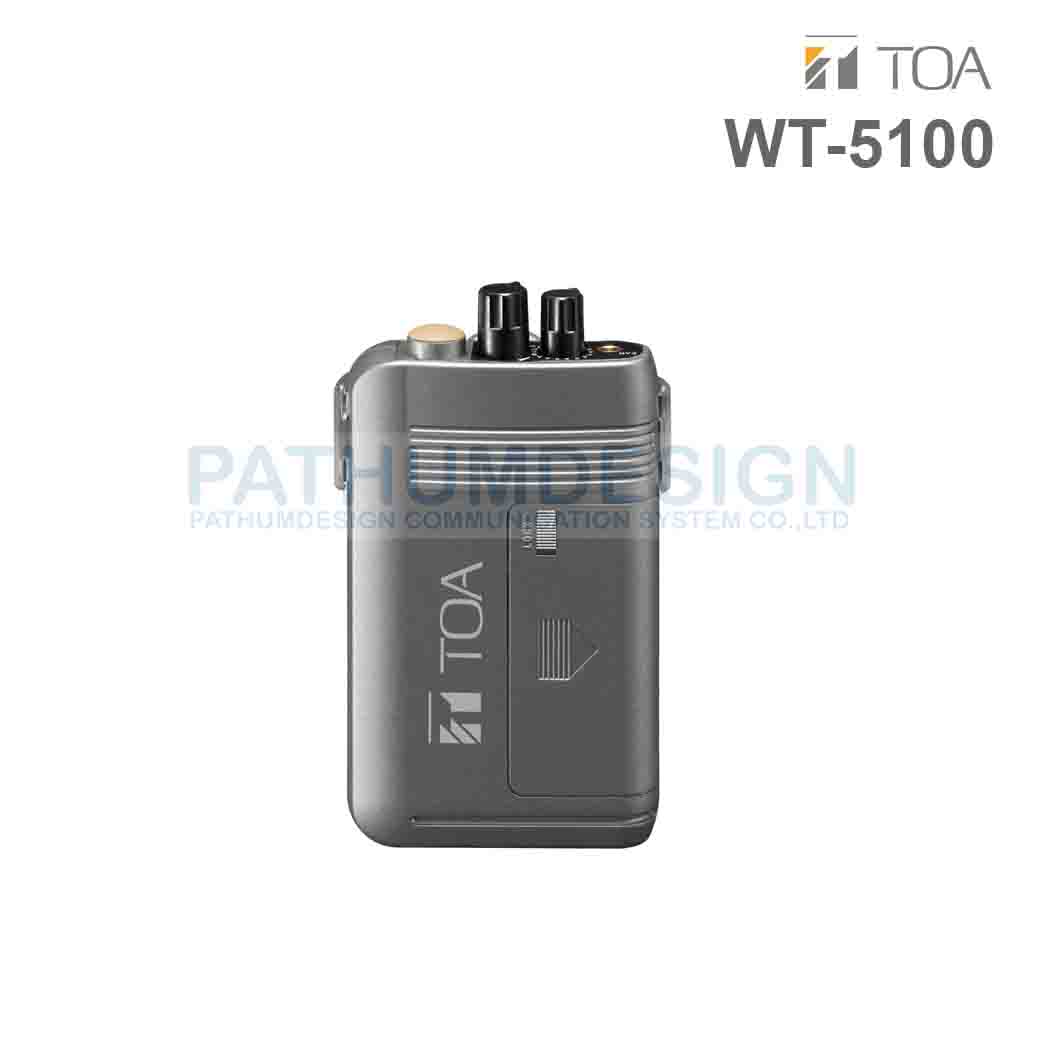

WT-5100 Wireless Portable Receiver

The WT-5100 is a Portable Receiver designed to receive UHF band radio signals. An optional earphone is required.

Specification

Power Source 1.5 V DC (Battery)
Receiving Frequencies 576 - 865 MHz (*1), UHF
Channel Selectable 16 selectable frequencies
Receiving System Double super-heterodyne
Receiving Sensitivity 60 dB or more, Signal to Noise ratio (20 dBμV input, ±40 kHz deviation)
Frequency Response 200 Hz - 5 kHz (Portable transmitter to Potable receiver)
De-emphasis 50 μs
Output Level 4 mW (16 Ω load, 10 % distortion)
Battery WB-2000 rechargeable battery (option) or LR6/AA alkaline dry cell battery
Battery Life 16 hours (when the WB-2000 rechargeable battery is used)
15 hours (when the alkaline battery is used)
Operation Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Resin, dark silver
Dimensions 62 (W) × 163.6 (H) × 32.5 (D) mm (2.44" x 6.44" x 1.28")
Weight 125 g (0.28 lb) (battery included)
Accessory Neck strap…1
Option Battery charger: BC-5000-2, BC-5000-6, BC-5000-12
Ni-MH Battery: WB-2000-2 (containing 2 pieces)
Ear-suspension earphone: YP-E401, Assist earphone: YP-E5000
